V-Type Filters – CV8 Series

Compact Carbon Filter Type Full Plastic Frame

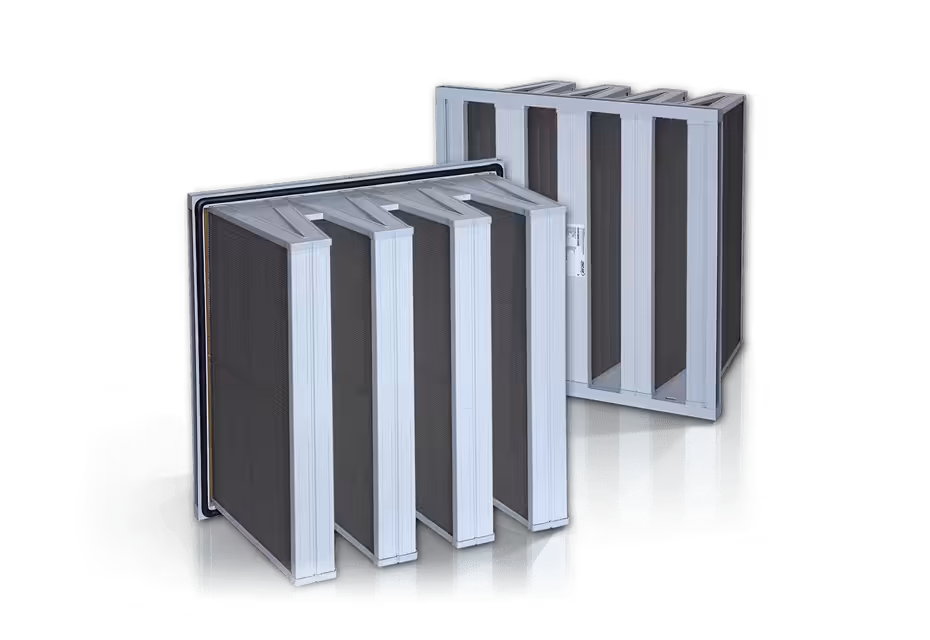

Full Plastic Compact Carbon Filter
Full Plastic Compact Carbon Filter
Design

The side covers of the filter are made from rigid plastic with integrated water outlet slopes on both the up- and down-stream sides. Connection slots for the insertion of the pre-filter frame HFA-# are also included. These features, in combination with the reinforced profiles, provide maximum space for the filter media pack and obtain a high mechanical strength. The filters are supplied with a flat flange and an optional endless gasket creating a secure seal between the filter and each standard pre-filter holding frame.

Testing

The filters are tested in accordance with the ISO 11155-2 standard for removal of indoor and outdoor gaseous contaminants.

Features
  • High quality micro fibre laminated carbon media
  • Lowest initial pressure drop
  • High quality standard due to Quality Assurance System
  • Highly economical through high final pressure drop
  • Usable in two flow directions
  • Rigid frame
Standards
  • EN 779
  • ISO 11155-2
Download brochure Compact Carbon Filter-CV8 Full Plastic Frame

The CV8 Full Plastic Compact Carbon Filter is designed for the highest necessities in gas and odour filtration applications.

Each CV8 Full Plastic filter contains eight ‘Minipleats-Media Packs’ cast in V-shape technology to achieve the lowest pressure drop results and highest gas absorption capacity.
