Fine Dust Filter – GR0 Series

Cylindrical Fine Dust Filter for Power stations / Gas turbines

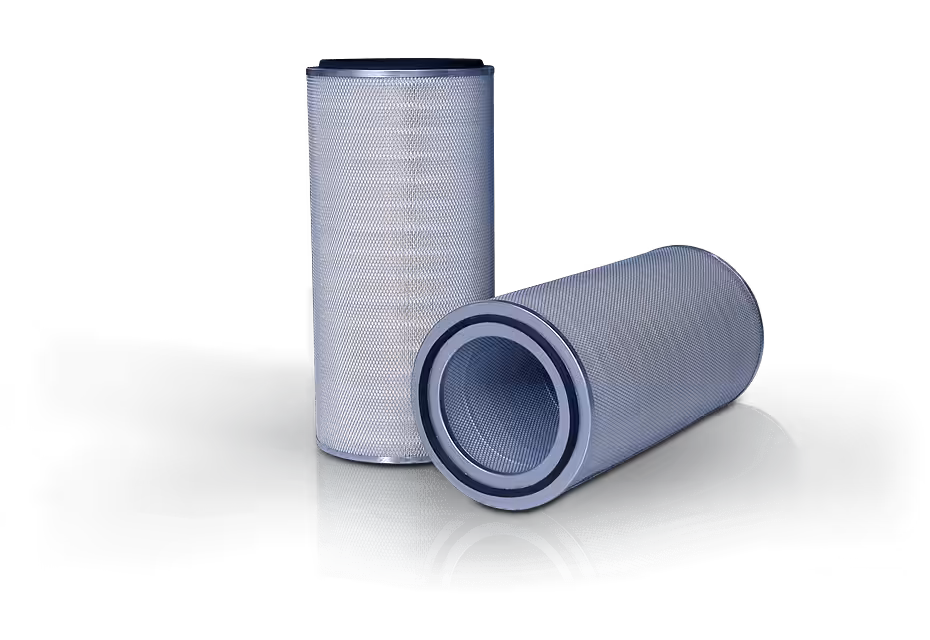

GR0 cylindrical filter cartridges
GR0 cylindrical filter cartridges
Design

The filter has two zinc coated steel end caps on both sides, the upper one with a glued cylindrical gasket and the lower one with an attached sealing disk. The reinforced pleated filter media (FA8267) is potted together with the expanded zinc coated steel screens into the caps with polyurethane. The embossed pleating spacers on top of each pleat, and the hot melt fixation on the inside, ensures the uniform shape of the filter media through the filter lifetime. This construction gives a highly active filter surface with a high dust holding capacity and a low pressure drop.
Each filter is tested on size and also visually tested for tightness and complementation. In our laboratory, the tensile strength of un-pleated and pleated media is tested using the dumb-bell shape of each roll. Furthermore, the design of those cartridges is approved through many kinds of examinations, such as the dust holding / pressure drop test and also the rust and extreme condition test

Testing

Each filter is tested on size and also visually tested for tightness and complementation. In our laboratory, we check the tensile strength of un-pleated and pleated media using the dumb-bell shape of each roll.
Furthermore, the design of those cartridges is approved through many kinds of examinations, such as the dust holding / pressure drop test and also the rust and extreme condition tests.

Features
  • High quality paper made of cellulose & synthetic components
  • Filter is pulse cleanable
  • Long lifetime through media with high tensile strength
  • Lowest initial pressure drop
  • Zinc coated end caps with glued sealing
  • Expanded zinc coated screen with high open surface
  • High quality standard due to Quality Assurance System
  • Highly economical through high final pressure drop
  • For use in gas turbine air filtration with back pulse
Standards
  • High quality standard due Quality Assurance System
  • ISO 9001:200
Download brochure Cylindrical Finedust Filter- GR0

The GR0 cylindrical filter cartridges are ­especially designed to meet the strict demands of gas ­turbine air filtration systems. The filter media used in these filters provides extra safe protection to gas turbines. The outstanding durability and the high efficiency of the filter media decreases the risk of dust entering due to media failure or due to high penetration values.

The G90 Series is designed for a longer lifetime with reduced maintenance costs. All G90 filters are designed for easy installation in existing HVAC systems and perform well as the primary filter or as a prefilter for extending the life of a high efficiency filter.

The G90 filters have an average efficiency of 30% to 60%. All testing is done in accordance with the ASHRAE 52-1 standard guidelines. The G90 filter has more media area for improved performance and longevity. The G90 filter is designed for applications requiring higher efficiency and arrestance. All units are available in 1”, 2”, and 4” thicknesses.

The G90 1”, 2”, and 4” filters are available in unlimited sizes. This will make increased efficiency available in all applications.
