Terminal Filter – TFU Series

Design

The TFU units are made of welded steel sheets and finished with a decontamination resistant Powder coating. The Clamping system is designed for an optimal laminar Air flow without any interference. ln addition the DOP can be measured from the installed Filter where a aerosol entry is provided for easy channeling of the test aerosol to interference. ln addition the DOP can be measured from the installed filter where a aerosol entry is provided for easy channeling of the test aerosol to the upstream of the filter media.

Testing

Each filter is tested and packed in accordance with American Standard IEST-RP-CC-001.3 (HEPA and ULPA Filters) or in accordance with the European standard EN 1822-1, 4&5 (testing filter elements HEPA and ULPA efficiency and scan method) or customer requested testing.

Features
  • HEPA efficiencies of 95% up to 99.9995% (@ 0.3µm )
  • High quality micro fibreglass paper
  • Lowest initial pressure drop
  • Adjustable airflow by means of a damper
  • Two different damper designs
  • Anodized rigid aluminum frame
  • High quality standard due to Quality Assurance System
  • HEPA filter tested by laser particle counting system
  • Highly economical although high final pressure drop
  • For use in clean rooms up to class 1
Standards
  • EN 1822-5
  • IEST-RP-CC001.3
  • EN 779
  • ASHRAE 52.1
  • ISO 9001:2000

The TFU unit is designed for critical air purity and hygiene requirements which are needed in medicine, biology, pharmaceutical and sensitive technical areas.

  • More items of the category: Air Filtration, Air Ventilation, Clean Room, Terminal Filters (clean room), Terminal Filters (hepa/ulpa)

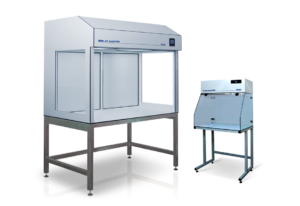

two clean-air working station
